A pickup that squats hard at the rear and goes light in the steering is telling you something before you ever leave the driveway. Trailer tongue weight has shifted load off the front axle, reduced headlight aim, and changed how the rig responds to crosswinds, braking, and emergency maneuvers. A correct weight distribution hitch setup puts controlled leverage back into the combination so the truck and trailer work as one unit.
This is not a universal “add a few links and go” job. Hitch head angle, spring-bar rating, trailer tongue weight, receiver rating, suspension condition, and the manufacturer instructions all matter. Set it up methodically, measure before making adjustments, and do not use a weight distribution hitch to cover up an overloaded trailer, weak rear suspension, or an undersized tow vehicle.
Start With Ratings, Loading, and Level Ground
Before installing bars or brackets, confirm that the hitch system is rated for the trailer’s loaded tongue weight and gross trailer weight. Tongue weight is commonly around 10 to 15 percent of loaded trailer weight for conventional bumper-pull trailers, but real numbers matter more than rules of thumb. A trailer loaded with a generator, tools, water, recovery gear, or a side-by-side can change substantially between trips.
Check the tow vehicle receiver label, hitch head rating, ball rating, trailer coupler rating, and the vehicle’s towing and payload limits. The lowest-rated component sets the limit. A weight distribution system does not increase a receiver’s rating unless the vehicle manufacturer specifically lists a higher rating for weight-distributing towing.
Load the trailer as it will travel. Secure cargo, fill or empty tanks as appropriate for the trip, and set tire pressures to the vehicle and trailer manufacturer specifications. Park on level, firm pavement with the truck and trailer straight. Uneven ground can make a setup look wrong when the measurements are actually fine.
Record Your Baseline Measurements
The first useful number is the truck’s unloaded front fender height. Measure vertically from the ground through the center of the wheel to the lower edge of the front fender opening. Repeat at the rear. Write both numbers down.
Then couple the fully loaded trailer to the ball with the spring bars disconnected. Lower the tongue jack until the trailer weight is fully on the truck, then measure the front and rear fenders again. The rear will usually drop and the front will rise.
That front rise is the reference point for your adjustments. Your goal is generally to return enough load to the front axle that the unloaded front measurement is restored or brought close to the tow vehicle and hitch manufacturer’s specified target. Do not blindly force the front end lower than its unloaded height. Too much bar tension can overload the front axle and create a harsh, unpredictable combination.
For the most accurate result, use public scale weights. Weigh the truck by itself, then weigh the truck and trailer coupled with and without the weight distribution engaged. Scale data shows front axle, rear axle, trailer axle, and combined weight instead of relying only on fender measurements.
Set Ball Height Before Tensioning the Bars
With the trailer level, the top of the ball should generally sit at a height that allows the trailer to tow level or slightly nose-down once loaded and connected. A trailer that runs noticeably nose-high can lose stability and transfer too little load to its front axle. One that runs too nose-low can overload the front trailer axle and reduce ground clearance.
Install the hitch shank and head in the correct rise or drop position, then torque the hitch ball and head hardware to the hitch manufacturer’s specifications. This hardware handles serious load. Do not guess at torque values, and do not treat a loose hitch ball as a minor issue.
Many systems use a head-angle adjustment with washers, a serrated washer stack, or an adjustable bolt. More rearward head tilt usually increases spring-bar leverage at a given chain length or bracket position. Different brands use different geometry, so follow the instructions for your specific trunnion-bar, round-bar, or integrated sway-control system.

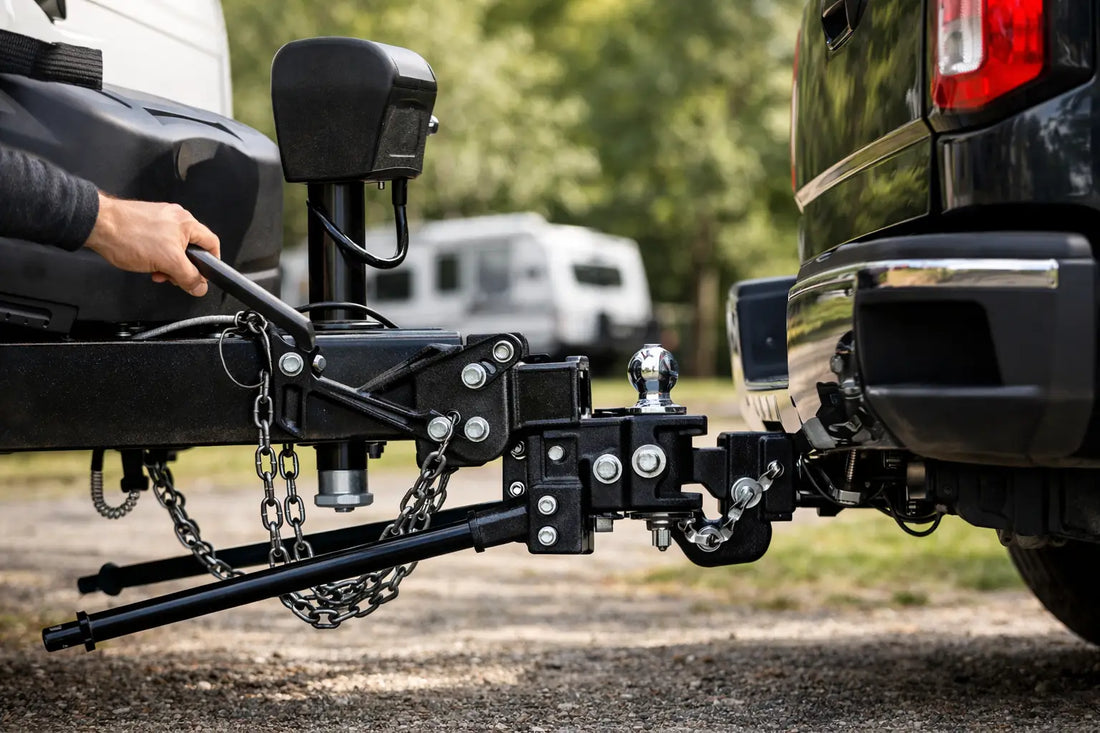

Weight Distribution Hitch Setup: Adjust Bar Tension
Couple the trailer, latch the coupler, and raise the tongue jack. For most chain-style systems, raise both the trailer tongue and the rear of the truck together several inches before loading the spring bars. This reduces force when snapping chains onto the brackets and keeps hands out of a high-tension danger zone.
Install the spring bars and attach the chains or bracket arms according to the system design. Start with the manufacturer’s recommended chain link count or initial bracket setting. Lower the jack fully, retract it, and remeasure the front and rear fenders.
If the front of the truck is still too high, add tension in small, repeatable steps. On a chain-style hitch, that may mean using one fewer free chain link. On an integrated bracket system, it may mean changing the bracket position or adding head angle. Make one adjustment at a time, then lower the rig, settle the suspension, and measure again.
If the front measurement goes below the unloaded baseline, reduce tension. A setup can look level at the rear while still carrying too much load on the front axle. The target is balanced axle loading and controlled handling, not simply a perfectly flat body line.
Do Not Use Spring Bars to Fix a Bad Load
Spring bars transfer load, but they do not create payload capacity or correct poor trailer balance. If the trailer has too little tongue weight, it can sway regardless of how aggressively the bars are tensioned. If it has excessive tongue weight, the truck may exceed rear axle, tire, payload, or receiver limits even with weight distribution engaged.
Move cargo carefully and recheck tongue weight when loading changes. Heavy tools, fuel cans, coolers, spare parts, and gear stored behind the trailer axle can have a bigger effect on stability than many owners expect.
Set Up Sway Control the Right Way
Weight distribution and sway control are related but separate functions. Some hitches use a friction sway-control bar, while others use built-in cam, cone, or linkage-based sway control. An integrated system is often the better choice for heavier trailers, frequent highway towing, or combinations exposed to wind and passing trucks, but it still needs correct adjustment.
Set the trailer brackets at the required distance from the coupler. Brackets placed incorrectly can interfere with propane mounts, battery trays, frame-mounted accessories, or the spring-bar travel path. On tight turns, check that the bars, chains, brackets, wiring, breakaway cable, and trailer tongue hardware all have safe clearance.
Friction sway bars typically need to be loosened or disconnected for slick conditions and very tight backing maneuvers, depending on the manufacturer’s instructions. Integrated sway-control hitches may be designed to remain connected while backing, but do not assume that without checking the manual.
Finish With a Real Safety Check
Before the first road test, inspect the full connection from truck to trailer. Confirm that the coupler is locked on the correct ball size, safety chains are crossed beneath the coupler without dragging, and the breakaway cable is attached to the tow vehicle independently of the chains. Plug in the electrical connector and verify running lights, turn signals, brake lights, and trailer brakes.
Check that the tongue jack is fully retracted and that spring-bar retaining clips, lift brackets, and head pins are fully seated. Torque-check accessible fasteners after the first trip and periodically afterward. New hardware can settle, especially after a few heat cycles and rough-road miles.
Then take the rig on a short local drive. Pay attention to steering response, brake feel, trailer tracking, and whether the combination porpoises over dips. A properly adjusted setup should feel planted, not nervous or over-tight. If the truck wanders, the trailer pushes in braking, or the ride is excessively harsh, stop and reassess load balance, tire pressure, bar tension, and axle weights.
The best towing setup is not the one with the most tension on the bars. It is the one that keeps every component within rating, returns the right amount of load to the front axle, and lets your truck tow straight when the road gets busy.
