The trailer lights work in the driveway, then quit halfway through a rainy tow. That is usually not a trailer problem. It is a bad splice, weak ground, pinched wire, or an overloaded vehicle circuit. When you install trailer wiring harness components correctly from the start, you get dependable signals, running lights, brake lights, and charging circuits when your truck is actually working.
For most pickups, SUVs, and crossovers, this is a straightforward job if you match the harness to the vehicle and trailer, protect the wiring from road debris, and test every circuit before loading up. The details matter more than the time it takes.
Choose the Right Trailer Wiring Harness First
Start with the connector your trailer needs. A 4-flat connector handles the basic lighting functions: left turn/brake, right turn/brake, running lights, and ground. It is common on small utility trailers, lightweight boat trailers, and basic cargo trailers without electric brakes.
A 7-way RV-style connector is the usual move for equipment trailers, enclosed trailers, travel trailers, and anything with electric trailer brakes. In addition to lighting circuits, it can carry a brake-controller output, 12-volt auxiliary power, and often a reverse-light or auxiliary circuit. A 5-flat setup adds a reverse or surge-brake lockout circuit, while 6-way connectors show up on some older trailer and RV applications.
Do not buy a connector based only on what is mounted to the trailer tongue. Check what functions the trailer actually uses. A 7-way plug with no working brake circuit is not enough if you are towing a loaded car hauler or equipment trailer that requires functional electric brakes.
Vehicle-specific T-connectors are the cleanest option when available. They plug into factory tail-light connectors or a factory tow-prep connector without cutting original wiring. They are fast to install and easier to diagnose later. A universal hardwire harness can work well on older vehicles, custom builds, or vehicles without a dedicated connector, but it requires better splice work and circuit identification.
Powered converter vs. basic converter
Many newer vehicles use sensitive body control modules, LED lighting, or low-current tail-light circuits. A powered converter isolates the trailer lighting load from those factory circuits and takes trailer power directly from the battery through a fused line. That is the right choice when the vehicle manufacturer calls for it, when trailer lighting load is significant, or when you want to avoid overstressing factory wiring.
A basic converter may be fine for a small trailer on an older, simple electrical system. It depends on the vehicle, the trailer light load, and whether the vehicle has separate amber turn signals and red brake lights. Verify the harness application before ordering, not after stripping wire.
What You Need to Install a Trailer Wiring Harness
A clean installation does not require a full electrical bench, but it does require more than a roll of electrical tape. Have a test light or multimeter, wire strippers, quality crimpers, heat-shrink butt connectors, split loom, zip ties, dielectric grease, and a drill with the right bits if a bracket or ground point must be added.
For powered harnesses, use the supplied fuse holder and do not substitute a larger fuse because the harness keeps blowing one. A blown fuse is telling you there is a short, incorrect connection, damaged wire, or excessive load. Find the cause before putting power back into the circuit.
Before starting, disconnect the negative battery terminal if you will be routing a battery power lead or making hardwired connections. Keep the trailer unplugged until the vehicle-side harness has been fully tested.
How to Install a Trailer Wiring Harness Cleanly
Locate the factory trailer connector or tail-light wiring access point. On many trucks with factory tow prep, the connection is near the rear bumper, behind a blank connector, or along the frame rail. On SUVs and crossovers, access may be behind an interior cargo-panel trim piece or behind a tail lamp.

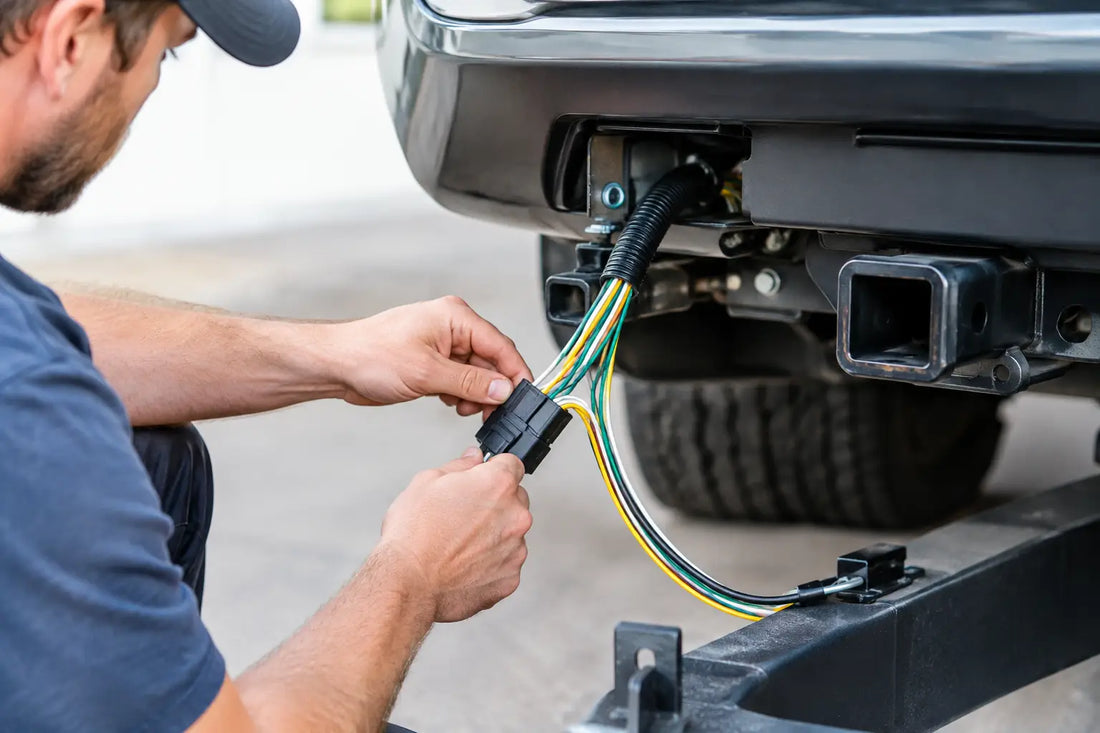

If you are using a T-connector, unplug the factory connector, insert the harness inline, and make sure each connection clicks fully into place. Partial engagement can create intermittent lighting faults that look like a bad converter or failed bulb. Secure the converter box where it will stay dry and cannot rub against sharp sheet metal. Inside a rear cargo panel is common on SUVs. On trucks, a protected body cavity or frame-mounted location can work if the harness is designed for exterior installation.
For a hardwire install, identify each vehicle circuit with a meter or test light. Do not trust wire color alone. Manufacturers reuse colors across trims, model years, and lighting packages. Activate the left signal, right signal, brakes, and running lights one at a time, then confirm the wire you are tapping carries the correct signal.
Use sealed heat-shrink connectors or properly crimped, weather-resistant connectors. Quick-splice taps are fast, but they can cut strands, loosen over time, and invite corrosion. They are rarely the best answer on a truck that sees salted roads, mud, water crossings, or regular trailer use.
Run the power wire with protection
A powered converter needs a dedicated fused power lead from the battery. Route it along the vehicle frame or factory harness path, keeping it away from exhaust components, moving suspension parts, steering shafts, driveshafts, and sharp edges. Use split loom wherever wire passes through exposed areas, and add grommets when passing through sheet metal.
Secure the wire regularly. A loose power lead will eventually rub through its insulation, especially near crossmembers and body mounts. Zip ties work when they are placed on stable harness paths, but insulated clamps are better for long runs under a work truck or off-road rig.
Install the fuse holder close to the battery, ideally within several inches of the positive terminal. This protects the full length of the power wire. Connect the battery lead last, after verifying that the harness is mounted, routed, and fused correctly.
Build a ground that will stay grounded
Ground faults cause more trailer-light headaches than almost anything else. A weak ground can make marker lights flash with turn signals, dim brake lights, or cause one side of the trailer to quit when the other side is activated.
Attach the vehicle-side ground wire to clean, bare metal on the frame or body using a self-tapping screw, bolt, or existing factory ground point. Remove paint, rust, and undercoating under the terminal, then use a star washer to bite into the metal. Once the connection is tight, protect the surrounding area from corrosion without insulating the contact surface itself.
The trailer also needs a solid ground path. Do not assume the hitch ball and coupler provide a dependable ground. They get greasy, rusty, painted, and loose. Run a dedicated ground wire from the trailer connector to the trailer frame, and bond the light housings if they do not have their own ground wires.
Test Every Circuit Before You Tow
Use a trailer wiring tester, multimeter, or test light to check the vehicle connector before plugging in the trailer. Verify running lights, left turn, right turn, brake lights, reverse output if equipped, 12-volt auxiliary power, and brake-controller output on a 7-way setup.
Then connect the trailer and repeat the test with the trailer lights operating. A vehicle-side connector can test perfectly while the trailer has a poor frame ground, corroded plug, failed LED module, or damaged wire near an axle or tongue pivot.
Watch for voltage drop under load. If lights dim noticeably when the brakes or turn signals activate, inspect grounds first. If a fuse blows only when the trailer is connected, disconnect trailer circuits one at a time to isolate the short. The usual trouble spots are crushed wires near the coupler, exposed wiring along the frame, water-filled lights, and damaged insulation behind the connector.
Common Mistakes That Create Repeat Repairs
The fastest-looking harness installation can become the slowest repair later. Avoid these common shortcuts:
- Mounting the connector where the trailer cable drags, stretches, or hangs below the bumper line.
- Leaving excess wire unsupported near the exhaust, spare tire, suspension, or hitch.
- Using the hitch as the only ground path.
- Feeding trailer lights directly from sensitive factory tail-light wiring when a powered converter is required.
- Skipping circuit testing because the plug fits the trailer connector.
A properly installed trailer harness should disappear into the truck, not hang below it. Match the connector to the trailer, protect every run, give the system a real ground, and test it before the load is on the hitch. That extra half hour is cheaper than troubleshooting dead lights on the shoulder with a trailer behind you.
