A trailer that stops straight and predictably starts with more than brake shoes, magnets, and a good controller. When you wire electric trailer brakes, the quality of the circuit determines whether the brakes apply evenly under load or fade into weak, inconsistent performance when you need them most. For truck owners pulling equipment, campers, car haulers, or utility trailers, this is wiring worth doing once and doing right.
Start With the Complete Brake Circuit
Electric trailer brakes use an electromagnet inside each brake assembly. When the brake controller sends current through the trailer’s brake circuit, the magnet grips the rotating drum face and actuates the brake shoes. More controller output means more braking force.
That simple operation depends on a complete path: a properly sized power wire from the brake controller, a solid connection at the vehicle-side connector, a protected brake wire running the length of the trailer, individual connections to every brake assembly, and a dependable ground return. A weak ground or undersized wire can make a perfectly good set of brakes feel lazy.
Most trailers use a 7-way RV-style connector for electric brakes. On the common RV wiring layout, the blue wire carries brake-controller output and the white wire is ground. Do not trust color alone on an older trailer, a repaired harness, or a custom build. Confirm each terminal by connector position and test it before making permanent connections.
The vehicle side matters just as much
The trailer wiring can be flawless and still underperform if the tow vehicle has a weak brake-controller installation. The controller needs a dedicated power feed, a proper ground, a brake-switch signal, and a brake-output wire routed to the 7-way connector. Many newer trucks have a factory trailer-brake harness or integrated controller, but verify that the trailer connector’s brake-output terminal is actually active.
If you are adding an aftermarket controller, follow its wiring diagram rather than guessing at factory wire colors. The brake-output lead should be protected from abrasion, heat, and pinch points from the cab to the rear of the truck. Keep it away from exhaust components, sharp brackets, and moving suspension parts.
Choose Wire Gauge for Distance and Load
Voltage drop is the enemy of electric trailer brakes. A long trailer harness, corroded splice, or wire that is too small restricts current before it reaches the brake magnets. The controller may show output, yet the trailer may not stop with the authority it should.
For many single- and tandem-axle trailers, 10-gauge stranded copper wire is a smart baseline for the main brake feed. It provides a stronger margin than lighter wire, especially on longer trailers. Smaller utility trailers with one axle may use 12-gauge wire successfully, but wire length and brake count still matter. For triple-axle trailers, long goosenecks, and heavy equipment trailers, stepping up to 8-gauge wire for the main feed can be the better move.
The ground path deserves the same attention. Run an appropriately sized white ground wire from the trailer plug to a clean, secure trailer-frame connection, then bond the brake assemblies and all lighting grounds properly. Relying on the ball coupler, hitch, or random frame contact as the primary ground is asking for intermittent brake and lighting problems.
Use stranded automotive-grade copper wire, not household solid-core wire. It handles vibration better and is built for the moisture, road spray, and movement a trailer sees every mile.
Route the Brake Wiring Like It Has a Job to Do
The cleanest wiring job is not automatically the best one. Brake wiring has to survive gravel roads, loading ramps, wet weather, axle movement, and years of vibration. Route the main brake wire inside the trailer frame where possible, or secure it along protected frame sections with insulated clamps.
Avoid loose wire loops beneath the trailer. They catch road debris, rub through on crossmembers, and can get torn off during off-road use or when backing around job sites. Where wire crosses a sharp edge or enters a junction box, protect it with a grommet or loom.

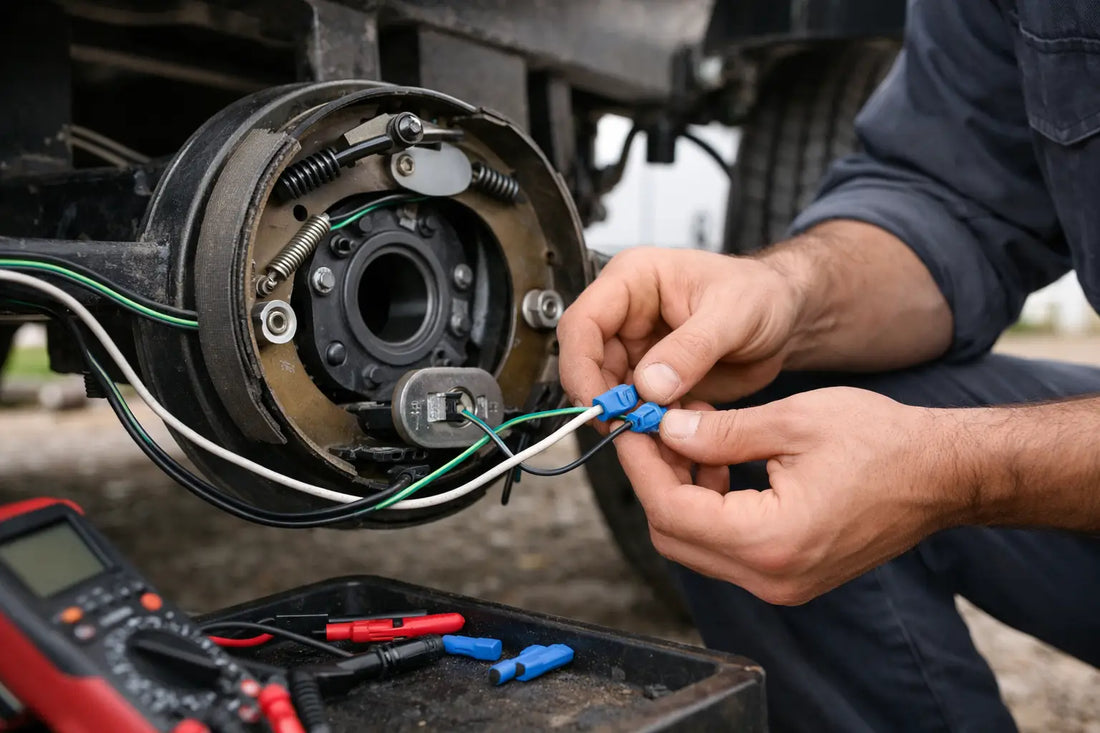

At each axle, branch from the main brake feed to both brake assemblies. Electric brake magnets are not polarity-sensitive, so either magnet lead can connect to the blue brake-feed wire and the other can connect to ground. What matters is consistency, clean connections, and a low-resistance ground path.
A sealed junction box near the tongue makes future service much easier. It gives you one protected place to connect the 7-way cable to the trailer circuits, inspect terminals, and troubleshoot without cutting open a wrapped harness. Leave enough slack at the tongue for tight turns, but not enough for the cable to drag.
Make Connections That Survive Weather
Twist-and-tape connections might work in a dry garage. Under a trailer, they collect moisture, corrode, and eventually create the kind of intermittent fault that wastes a Saturday diagnosing. Use crimp connectors rated for automotive use, preferably heat-shrink butt connectors with adhesive-lined insulation.
For high-current main connections, quality crimping matters. Use the correct crimp tool for the terminal size, tug-test every connection, then shrink the insulation evenly with controlled heat. Do not burn the connector or melt adjacent wire insulation.
At frame grounds, remove paint, rust, and coating to expose bare metal. Secure the terminal with a bolt, star washer, and locking hardware, then seal the finished connection against corrosion. A dedicated ground wire run directly to each brake backing plate is even better on trailers with painted, galvanized, aluminum, or heavily corroded frames.
Do Not Skip the Breakaway System
A breakaway kit is not an accessory for heavy trailers. It is a critical safety system that applies the trailer brakes if the trailer separates from the tow vehicle. The system typically includes a battery, charger or maintenance circuit, breakaway switch, and cable.
The breakaway switch should be mounted securely at the tongue. Its cable needs to connect independently to the tow vehicle, not loop around the safety chains. If the chains remain attached during a separation, the breakaway cable must still be able to pull the switch pin.
Wire the breakaway battery so it can power the trailer brake circuit when the pin is pulled. Keep the battery charged and test it regularly. A dead breakaway battery provides no protection, even if the rest of the brake wiring is perfect. Trailer requirements vary by location, weight rating, and use, so confirm the rules that apply to your trailer before towing.
Test Before You Load Up
Once the wiring is complete, test it with the trailer unloaded and supported safely. Plug into the tow vehicle, turn on the controller, and use the manual override. You should hear or feel the brakes engage at each wheel. With the trailer wheels raised, a helper can rotate each wheel while you apply the manual control to confirm that each brake grabs.
Then inspect the controller display if equipped. Many controllers report connection status or identify a short circuit. A brake circuit that immediately shows an overload, no trailer connection, or erratic output needs attention before the trailer goes on the road.
A multimeter gives you another useful check. Verify continuity from the 7-way brake terminal to each brake assembly, inspect grounds for low resistance, and look for voltage at the brake magnets while the manual override is applied. If one axle is weak, compare its wiring and magnet resistance with the axle that works correctly.
Set the controller with a real-world brake test
Controller gain is not a set-it-and-forget-it number. Trailer weight, cargo placement, road conditions, and brake condition all change the setting you need. Start at the controller manufacturer’s recommended baseline, then make several low-speed test stops on a clear, level road.
Increase gain until the trailer contributes firm braking without locking its wheels during a hard manual application. If the trailer pushes the truck, gain is too low. If it locks too easily, reduce gain. Recheck the setting whenever you load a different machine, add cargo, or hook up another trailer.
Good electric trailer brake wiring is not flashy, but it is part of the build. Use the right gauge, protect every run, build solid grounds, and test the system before the trailer carries real weight. Your truck, trailer, and cargo will all behave better when the brake circuit is ready to work as hard as the rest of the rig.
